Data center harmonics arise from UPS systems, switch-mode power supplies, cooling drives and rapidly changing IT loads. These nonlinear loads can create harmonic current, high neutral current and additional heating in transformers and cables. A reliable mitigation design starts by separating harmonic current from reactive-power demand and measuring both under realistic load conditions.
Modern UPS input stages may have lower distortion than older rectifiers, but the complete facility includes many operating states: utility mode, battery charging, bypass, generator operation, redundant paths and changing server utilization. The harmonic spectrum at one UPS input does not automatically describe the main low-voltage bus or the point of common coupling.
| Measurement | Purpose |
|---|---|
| Phase RMS current | Shows loading and phase balance |
| Neutral RMS current | Identifies triplen-harmonic and single-phase load effects |
| Harmonic amperes by order | Provides the basis for AHF compensation current |
| THDi and TDD | Describes distortion relative to load and demand current |
| THDv | Shows voltage waveform impact at the bus |
| kW, kVA, kVAR and PF | Separates real power, reactive demand and distortion |

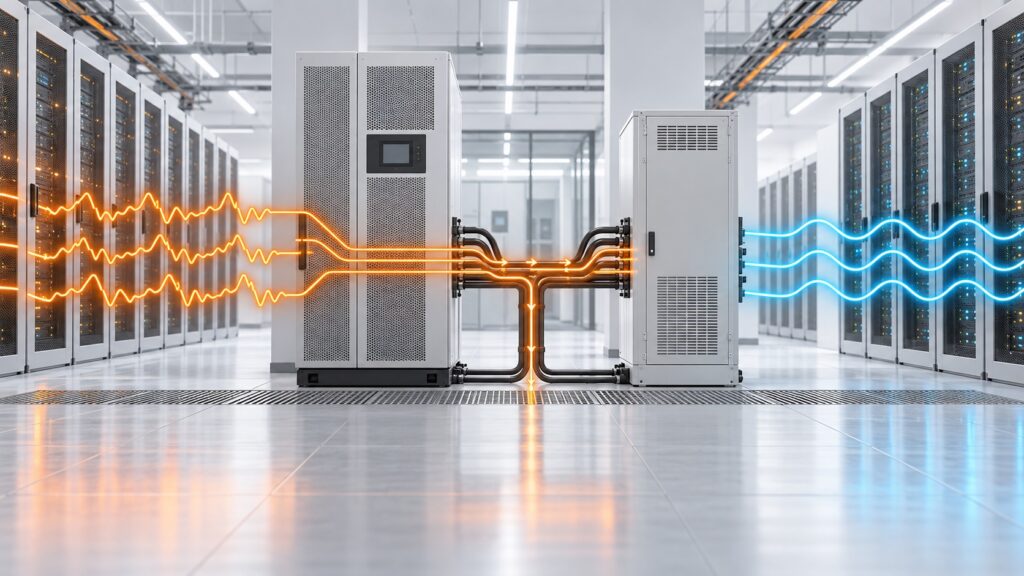

Single-phase electronic loads can produce third and other triplen harmonics that add in the neutral instead of cancelling. A 3P4W active harmonic filter may therefore need to compensate both phase harmonics and neutral current. Record each conductor independently and check cable, busbar and transformer thermal limits.
Identify the worst repeatable harmonic-current condition, then consider redundancy and planned IT growth. Avoid sizing from UPS kVA alone. Two facilities with the same UPS capacity can have different input topology, loading and harmonic performance. Central compensation may be efficient for a common bus, while local filters can reduce harmonic flow in selected feeders.
See the data center AHF and SVG integration guide and the APF + SVG data center project for related system approaches.
An AHF addresses harmonic current. An SVG addresses dynamic reactive power and phase unbalance. During generator operation, source impedance can change and voltage distortion may increase. The control plan should therefore be tested in utility, generator, bypass and major load-transfer modes. Protection and CT placement must remain valid in every configuration.
Measure UPS input current, bypass current, neutral current and voltage distortion during representative IT loading, battery charging and generator operation. Confirm whether the UPS already includes input filtering and whether harmonic performance changes at light load. For AHF sizing, use measured harmonic amperes and simultaneous load rather than UPS nameplate kVA alone. Check CT placement carefully where redundant A and B paths or multiple parallel UPS systems are used.
The commissioning plan should include normal utility supply, generator supply, transfer events and expected future rack density. Verify filter current, temperature, alarms and communication at each operating state. Keep the baseline analyzer files so the same points can be compared after installation. When system-level harmonic limits are specified, identify the point of common coupling and use the applicable IEEE 519 reference. These steps make data center harmonics control repeatable and auditable.
A standard three-wire connection does not directly compensate neutral current. The network and equipment configuration must explicitly support the required four-wire function.
It depends on feeder contributions, redundancy and cable losses. A survey should compare central and local options.
An SVG primarily compensates reactive power and unbalance. Harmonic mitigation requires an AHF or another specifically designed harmonic solution.
