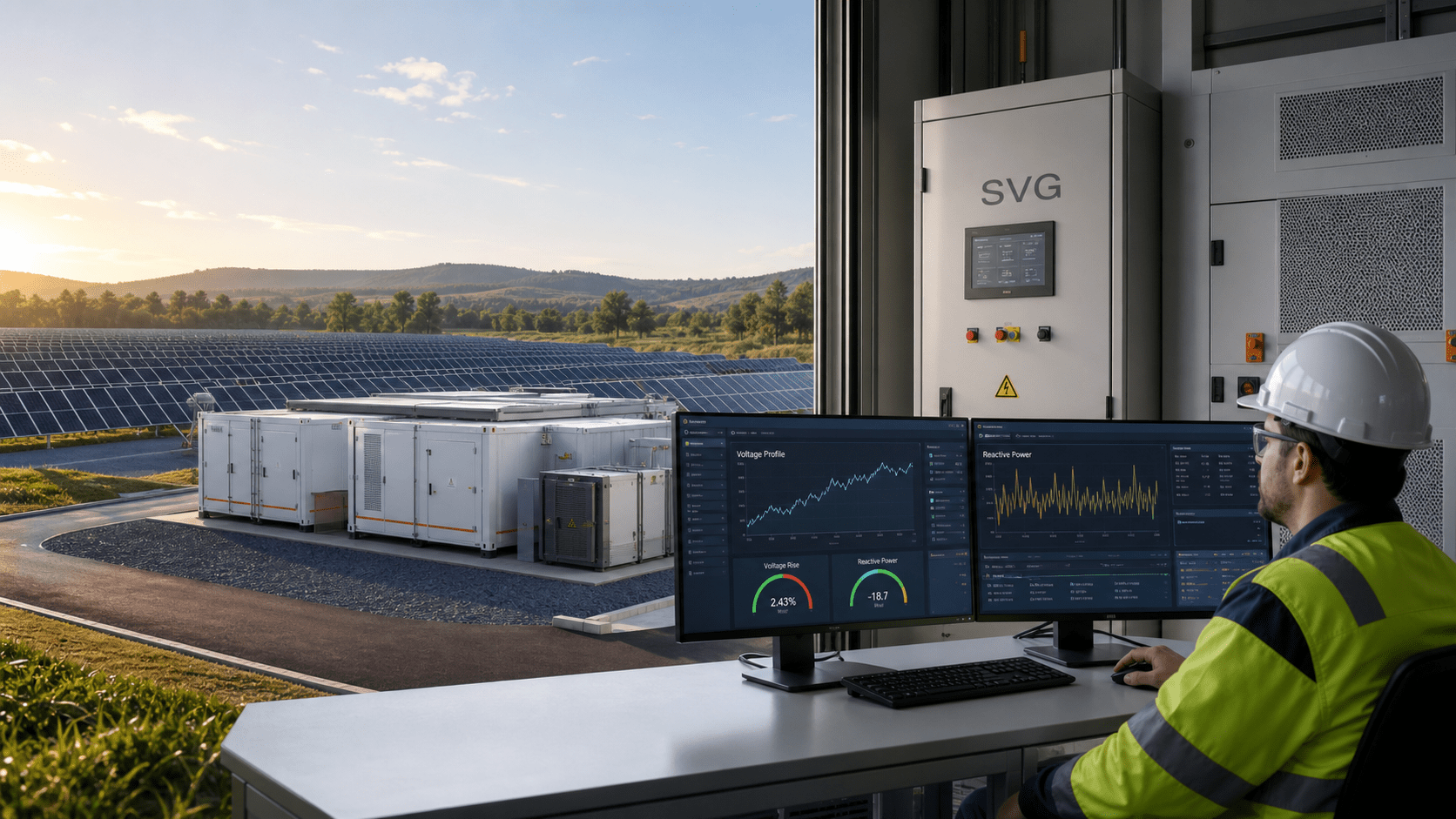

An SVG for solar PV and battery systems helps manage reactive power when generation and site demand change within seconds. Inverters can regulate reactive current, but grid-code requirements, feeder voltage rise and fast load changes may still require a dedicated static var generator at the point of common coupling.
Solar output changes with cloud cover, while battery converters can change between charging and discharging. These transitions create a moving reactive-power requirement that slow capacitor steps cannot follow. An SVG responds continuously, supports leading or lagging VAR control and can improve phase balance on weak feeders. The design should consider the grid connection, transformer impedance, export limit and the site’s largest dynamic loads.
Set the control priority between voltage regulation, power factor and reactive-power commands from the plant controller. Confirm CT location, communication protocol, ride-through behaviour, harmonic environment and islanding protection. If the site includes VFDs or rectifiers, measure THDi separately and add an AHF or hybrid function when harmonic mitigation is required.
The SVG provides dedicated, fast compensation and can respond to facility loads independently of inverter operating limits.
It can regulate reactive power and support voltage stability, but the final result also depends on feeder impedance, active power flow and grid settings.
Not always. Measure THDi and inverter interaction first; add AHF capability when the harmonic spectrum or grid requirement calls for it.
Use the results to compare active harmonic filter solutions, SVG and hybrid VAR systems and power capacitor systems. The equipment rating should follow the measured load profile, available fault level, cabinet environment and planned expansion.
Share your PV capacity, transformer data and voltage trend with Elumotive for SVG sizing. For reference, review this power-quality resource and compare the measured result with your site requirements.
Keep the one-line diagram, test records, protection settings and commissioning results together with the quotation. A documented baseline lets the maintenance team verify improvement after installation and gives procurement a clear specification for future expansion.
Review the measurements again after major process changes, transformer replacement, generator operation or renewable-energy expansion. This simple follow-up keeps the SVG for solar PV recommendation aligned with the real operating conditions.
Use measured operating data to choose the control mode, current rating and protection settings. The same equipment can behave differently at light load, normal production, generator operation or renewable-energy export, so the final specification should describe each scenario. Keep the baseline waveform, harmonic spectrum and power-factor trend with the project file.
After installation, repeat the measurements and compare the result with the agreed acceptance values. Check temperature, alarms, communication, phase balance and response during the most demanding process step. This follow-up turns a one-time purchase into a repeatable power-quality improvement plan and gives the maintenance team a clear reference for future expansion.
