STATCOM vs SVC is a system-design decision, not a simple contest between a newer and an older device. Both are shunt-connected flexible AC transmission solutions that regulate voltage and exchange reactive power. An SVC switches or controls reactors and capacitor banks with thyristors, while a STATCOM uses a voltage-source converter. The best choice depends on the required Mvar at low voltage, grid strength, response, harmonic performance, footprint, losses, redundancy and total project cost.
Quick answer: a STATCOM is usually favored where strong dynamic support must be maintained during voltage depression, space is limited or weak-grid control is critical. An SVC can be economical for large steady-state Mvar duties where sufficient area is available and its voltage-dependent output is acceptable. The correct comparison must use the same point-of-connection performance, duty cycle and contingency cases.
An SVC combines thyristor-controlled reactors (TCR), thyristor-switched capacitors (TSC) and harmonic filters in an arrangement selected for the required capacitive and inductive range. By changing thyristor firing angle and switching capacitor branches, it varies the fundamental reactive current drawn from or supplied to the grid. The passive components are directly influenced by system voltage and frequency.
A STATCOM creates a controllable AC voltage behind a coupling reactance using a voltage-source converter, commonly based on modular power-electronic cells at medium or high voltage. If the converter voltage magnitude is above the grid voltage, capacitive reactive current flows to the grid; if it is below, the converter absorbs reactive current. Control software determines voltage droop, current priority, sequence response and interaction with other assets.
| Criterion | STATCOM | SVC |
|---|---|---|
| Main technology | Voltage-source converter | Thyristor-controlled/switched reactors and capacitors |
| Low-voltage reactive current | Can maintain current until converter limit | Output falls strongly with bus voltage |
| Typical footprint | Compact converter building and transformer | Larger reactor, capacitor and filter yard |
| Harmonic equipment | Converter filters/reactors as designed | Large passive filters often form part of Mvar supply |
| Loss profile | Converter and cooling losses | Reactor, transformer and filter losses |
| Control flexibility | High; software-defined within hardware limits | Effective for its designed voltage/Mvar function |
For a shunt susceptance, reactive power varies approximately with the square of voltage: Q = V²B. If an SVC branch supplies 100 Mvar at 1.0 pu voltage, its theoretical output at 0.8 pu is about 64 Mvar before control and equipment limits are considered. This is exactly when a faulted or weak bus may need the most support.
A STATCOM behaves more like a controlled current source over much of its range. If it can maintain rated capacitive current at 0.8 pu, reactive power becomes approximately 0.8 pu rather than 0.64 pu. At still lower voltage, modulation and current limits define the envelope. This stronger low-voltage current capability often allows a smaller nominal Mvar rating to meet a specified fault-recovery objective, but the conclusion must come from dynamic studies.
Both technologies respond much faster than mechanically switched capacitor banks. A STATCOM converter can change its current command within milliseconds, while plant-level voltage settling also depends on measurement filters, transformer impedance, network strength and controller tuning. An SVC can also provide rapid continuous control through its TCR. Therefore, a specification should not compare a STATCOM “response time” with an SVC switching time unless the measured variable and test method are identical.
An SVC’s TCR creates characteristic harmonic currents, so tuned filter branches are commonly included. Those filters may supply a substantial part of the capacitive Mvar at fundamental frequency. Their tuning and duty must account for network impedance, component tolerance, frequency range and existing background distortion. A future network change can move a resonance or increase filter current, which is why the study cannot stop at the original operating topology.
A multilevel STATCOM generally requires less external harmonic-filter capacity, but “filterless” should not be assumed without a guaranteed spectrum at the connection point. Switching strategy, cell count, coupling reactance and transformer arrangement affect emissions. Both technologies should be checked against applicable harmonic limits, including interaction with renewable inverters, cables and capacitor banks. For current-harmonic fundamentals, see our IEEE 519 compliance guide.
Renewable collection networks change operating point with irradiance, wind, dispatch and outages. Inverter controls can interact with the dynamic compensation and with each other. A STATCOM offers broader software-defined behavior and can be designed with grid-forming functions, but grid-forming performance must be validated under converter current limits. An SVC can still be effective where the system has an adequate voltage reference and the main need is high-volume dynamic Mvar.
Use load-flow studies to establish steady-state range, fault studies for equipment ratings, RMS dynamic studies for voltage regulation and electromechanical modes, and electromagnetic-transient studies for weak-grid and converter-control interactions. The National Energy System Operator’s grid-forming overview explains why voltage-source behavior is becoming important as synchronous generation declines. Our grid-forming STATCOM guide covers the control distinction in more detail.
An SVC yard needs clearances for reactors, capacitors, buswork and filters. This may be acceptable at a new transmission substation but difficult inside a solar plant or industrial site with limited land. A STATCOM concentrates much of the function inside converter enclosures, although it still needs cooling, a coupling transformer, switchgear and maintenance access.
Modular STATCOM cells can provide graceful degradation: a bypassed cell or redundant phase module may allow reduced operation until maintenance. The project must specify the remaining Mvar after one module, cooling unit, control channel or transformer path is unavailable. SVC redundancy is organized differently through branches and auxiliaries. Compare usable capacity under N-1 conditions rather than counting components.
An SVC can have a lower cost per nominal Mvar for very large installations. A STATCOM can recover part of its higher converter cost through smaller footprint, stronger low-voltage performance and modular deployment. A fair financial comparison uses the rating each technology needs to meet the same dynamic requirement; comparing equal nameplate Mvar may favor the wrong option.
Suppose a renewable substation needs ±60 Mvar at nominal voltage, at least 45 Mvar capacitive support at 0.75 pu voltage for a defined duration, and stable operation down to an SCR of 1.8. An SVC rated ±60 Mvar at nominal voltage may not meet the low-voltage Mvar requirement because its capacitive branches are voltage dependent. It could be upsized or combined with other equipment. A current-limited STATCOM may meet the low-voltage point with a closer nominal rating, subject to its converter and transformer envelope.
The engineer should then compare EMT stability, inductive range, overload, footprint, losses and cost. If the site also needs large passive harmonic filters for other reasons, an SVC arrangement may gain an economic advantage because the filters contribute fundamental Mvar. If land and fault recovery dominate, the STATCOM may be stronger. The example shows why one criterion cannot decide every project.
A STATCOM can change converter current very quickly, but complete bus-voltage settling depends on control tuning and the network. A well-designed SVC is also a fast dynamic device. Compare guaranteed results using the same test definition.
Yes. Combinations of controlled reactors and capacitor/filter branches can create both ranges. The exact range changes with bus voltage and with which branches are available.
A STATCOM often has an advantage because it maintains reactive current at lower voltage and offers flexible control. The required answer still depends on validated studies, converter interactions, current limits and the specified contingencies.

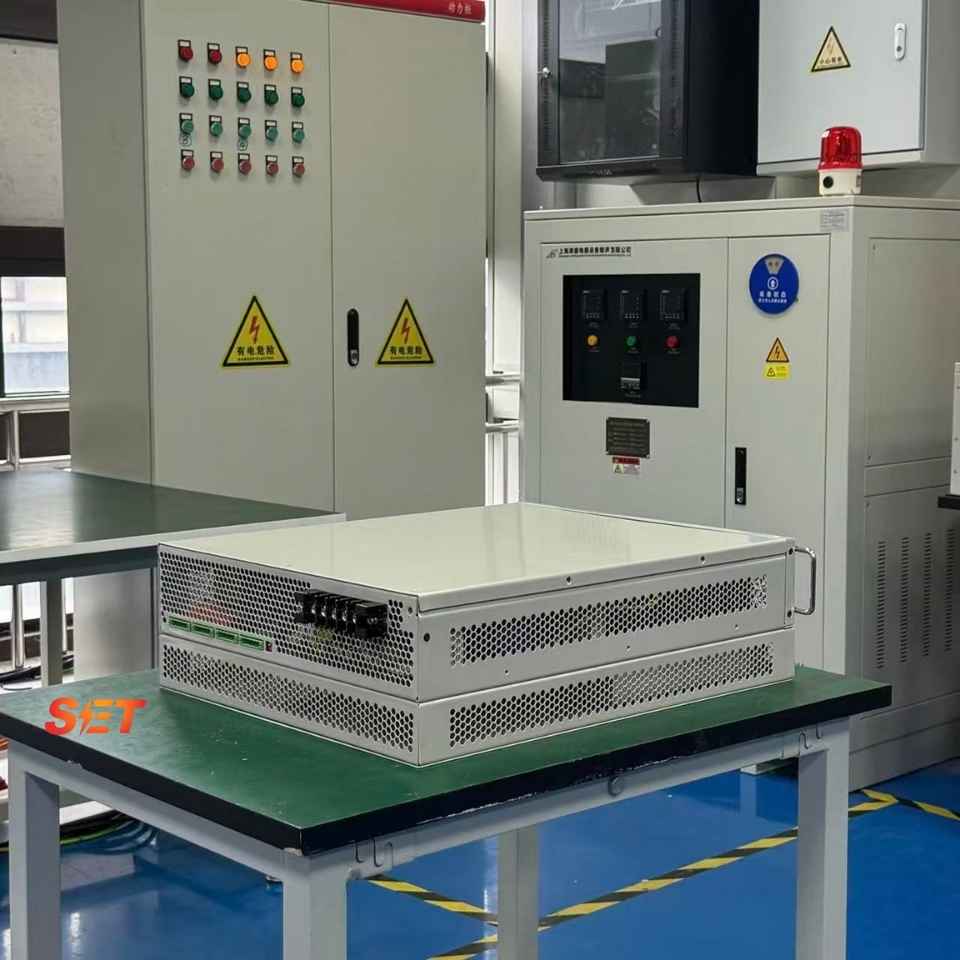

Elumotive’s 3–35 kV SVG/STATCOM systems support industrial and renewable applications. To compare equipment on the same performance basis, send the single-line diagram, grid-strength cases, voltage/Mvar envelope and dynamic-study requirements.
