Industrial power quality problems often begin as small, intermittent events: a drive trips once a week, a capacitor runs hot, or a production line loses synchronization. A power quality audit checklist turns those symptoms into measurable evidence so engineers can choose the right combination of active harmonic filtering, dynamic VAR compensation and power factor correction.

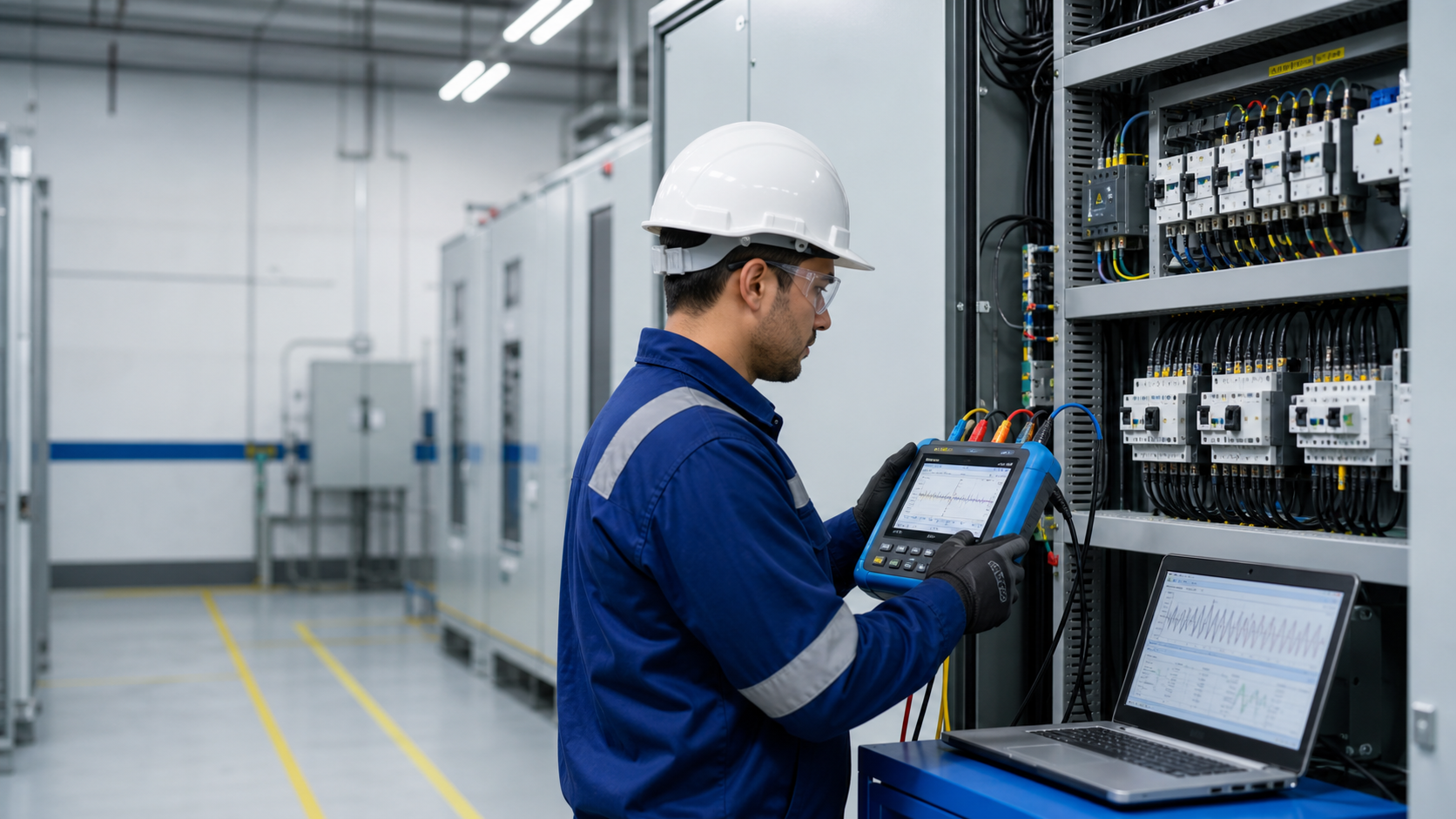

Keep the power quality audit checklist visible during the site walk. Record the measurement location, instrument class, sampling interval and production state for every data set. Repeat critical measurements at the main incomer and at the largest nonlinear feeder so the final recommendation can be traced back to a real operating condition. When harmonic limits are part of the project brief, compare the report with the latest IEEE 519 guidance and document any assumptions.
Installing a filter or capacitor bank without a site survey can solve one symptom while leaving the root cause untouched. A proper audit identifies the load profile, the source impedance and the operating conditions that change during shifts. The result is a design based on measured current and voltage rather than a nameplate estimate.
Use the audit results to separate steady-state issues from fast-changing events. An active harmonic filter is normally selected when VFDs, UPS units or rectifiers create current distortion. An SVG or hybrid VAR system is better suited to rapid reactive-power changes, load balancing and low power factor. Where the load is stable, a correctly protected power capacitor system can provide economical bulk compensation.
For mixed loads, size the solution against the worst operating state, not the average. Confirm CT location, available short-circuit capacity, cabinet ventilation, communication requirements and future expansion before finalizing the rating.
A repeatable power quality audit checklist also improves procurement. It gives vendors the same voltage, current, kVAR and harmonic data, making quotations easier to compare. It also creates a baseline for commissioning: after the AHF, SVG or capacitor bank is installed, the team can repeat the measurements and verify the improvement.
A useful report should show one-line diagrams, trend charts, harmonic spectra, load schedules and a list of abnormal events. Add a short recommendation for each measurement: monitor, retune, filter, compensate or redesign. This format makes the project easy to review with maintenance, production and procurement teams.
At least one representative production cycle is recommended. A seven-day capture is often better when shifts, weekends or renewable generation change the load.
No. The analyzer provides evidence, but the final AHF rating also depends on CT placement, target residual THDi, overload margin and future load growth.
Use a hybrid design when the plant needs economical bulk kVAR plus fast compensation for fluctuating loads. The SVG handles dynamic changes while the capacitor stages cover the base demand.
The power quality audit checklist should be updated after every major load change, transformer replacement or renewable-energy expansion. Keeping the file current prevents engineers from sizing new equipment from outdated assumptions.
