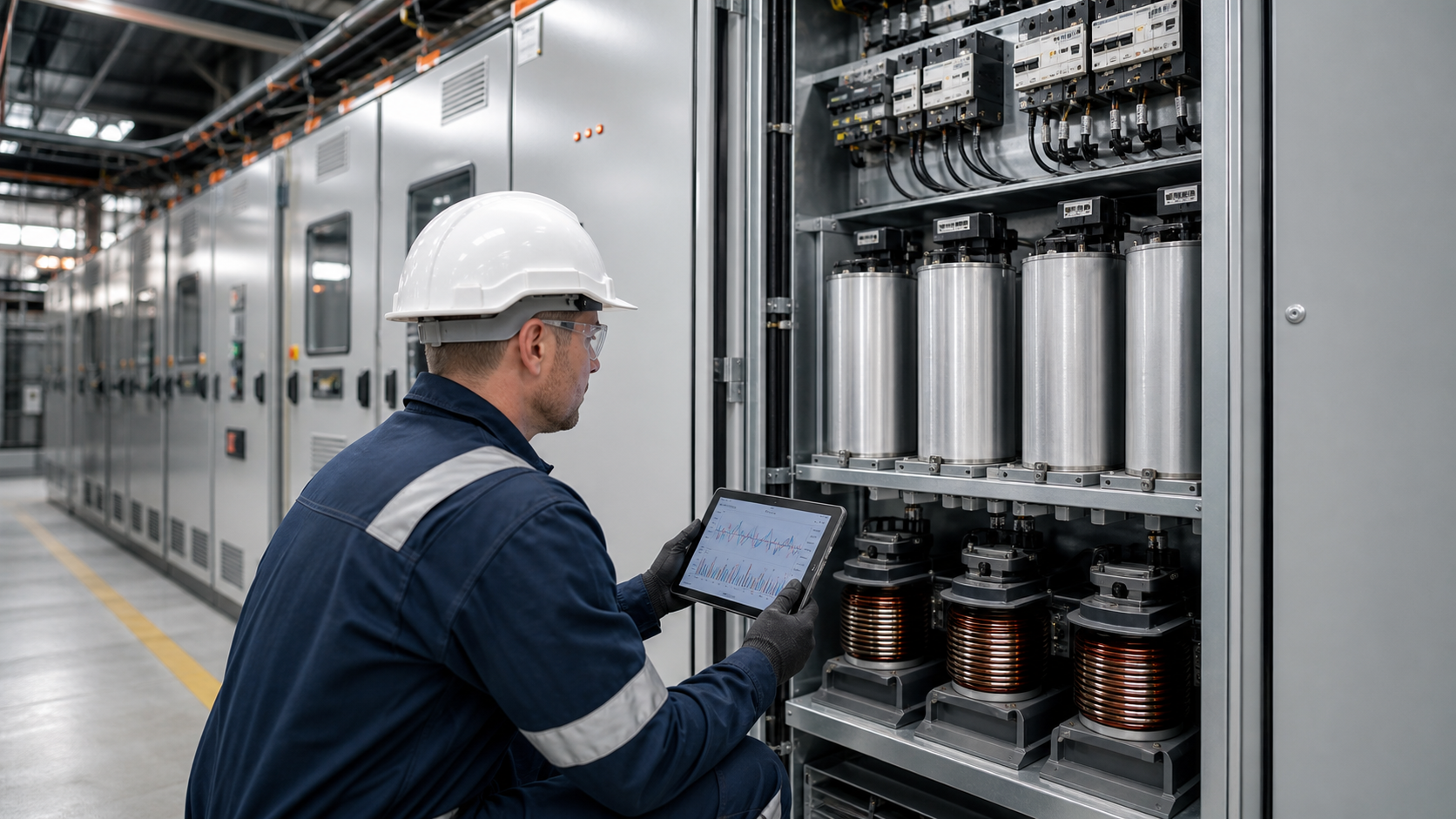

A detuned reactor capacitor bank is often the safer choice when a facility has VFDs, UPS systems or rectifiers on the same bus as power-factor correction equipment. The reactor shifts the natural frequency away from dominant harmonics, while the capacitor supplies the required reactive power. This guide explains how to choose between a detuned and standard bank.
A standard capacitor bank can perform well on a clean, stable network. In a plant with nonlinear loads, however, the capacitor may attract harmonic current and increase heating or resonance. Review the measured THDi, existing transformer impedance, capacitor steps and harmonic spectrum before selecting the bank. If the fifth or seventh harmonic is significant, a detuned design should be evaluated by a qualified engineer.
A detuned reactor capacitor bank adds reactors, thermal considerations and a different tuning frequency, but it can extend capacitor life and reduce nuisance trips. Check voltage rise across the capacitor, reactor losses, inrush current, discharge time and switching duty. The controller should prevent over-compensation at light load and should coordinate with any AHF or SVG already installed.
No. Clean networks with low distortion may use a standard bank. Harmonic measurements and resonance calculations should guide the decision.
Yes. The AHF can reduce harmonic current while the detuned bank supplies bulk reactive power, provided the control strategy is coordinated.
Resonance and amplified harmonic current can overheat the capacitor, shorten its life and trigger protection.
Use the results to compare active harmonic filter solutions, SVG and hybrid VAR systems and power capacitor systems. The equipment rating should follow the measured load profile, available fault level, cabinet environment and planned expansion.
Share your harmonic spectrum and capacitor schedule with Elumotive for detuned-bank selection. For reference, review this power-quality resource and compare the measured result with your site requirements.
Keep the one-line diagram, test records, protection settings and commissioning results together with the quotation. A documented baseline lets the maintenance team verify improvement after installation and gives procurement a clear specification for future expansion.
Review the measurements again after major process changes, transformer replacement, generator operation or renewable-energy expansion. This simple follow-up keeps the detuned reactor capacitor bank recommendation aligned with the real operating conditions.
Use measured operating data to choose the control mode, current rating and protection settings. The same equipment can behave differently at light load, normal production, generator operation or renewable-energy export, so the final specification should describe each scenario. Keep the baseline waveform, harmonic spectrum and power-factor trend with the project file.
After installation, repeat the measurements and compare the result with the agreed acceptance values. Check temperature, alarms, communication, phase balance and response during the most demanding process step. This follow-up turns a one-time purchase into a repeatable power-quality improvement plan and gives the maintenance team a clear reference for future expansion.
