AHF Installation and Commissioning Guide: CT Placement, Wiring and Safety Checks

A successful AHF installation guide starts before the cabinet arrives. Engineers need a clear one-line diagram, measured harmonic data and a safe location for the current transformers. The installation should make the active harmonic filter easy to isolate, test and maintain while keeping the sensing circuit accurate.

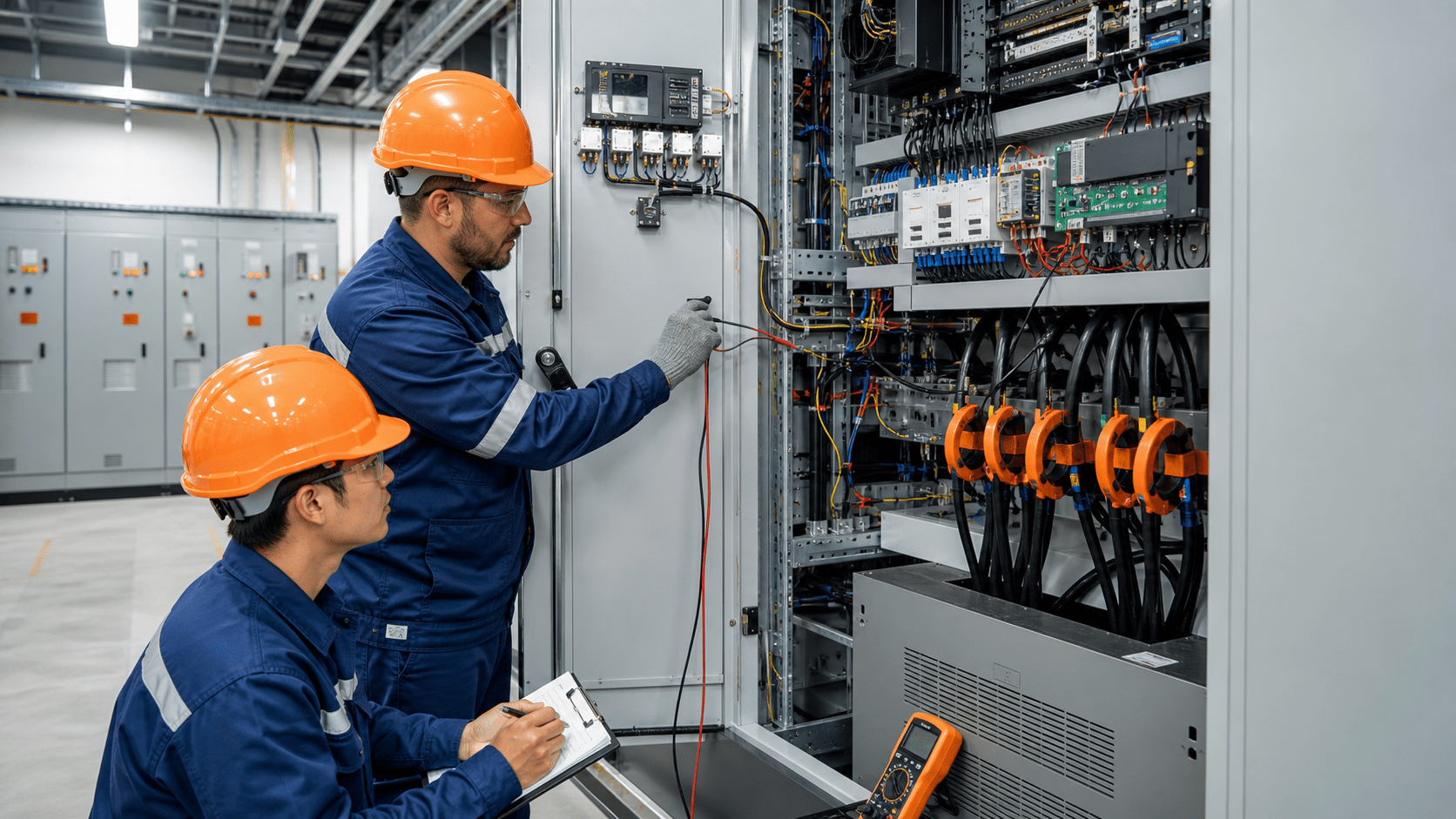

AHF installation guide for industrial power quality

AHF installation guide: prepare the site

Confirm the system voltage, frequency, short-circuit level, neutral arrangement and available cabinet space. Check that the panel has adequate ventilation and that the AHF can be disconnected without interrupting critical production. Mark the incomer, nonlinear feeders and the intended CT locations on the drawing. The AHF should sense the load current at the correct point so it can inject the required compensating current without chasing unrelated upstream loads.

CT placement, wiring and protection checks

CT polarity and phase sequence are the most common causes of commissioning problems. Install the sensors with the correct P1/P2 orientation, keep secondary wiring short and protected, and verify that the measurement circuit is never left open while energized. Separate power and communication cables, provide a reliable protective earth, and confirm breaker, fuse and bypass ratings before energizing the filter.

Implementation checklist

Frequently asked questions about AHF installation guide

Can an AHF share CTs with a power meter?

It can when the CT ratio, accuracy class and wiring arrangement are approved for both devices. If the signals interfere, use dedicated CTs for the filter.

Where should the CTs be installed?

The CTs normally measure the load current at the point where compensation is required. The exact location depends on whether the design targets one feeder, a bus section or the whole plant.

What should be measured after start-up?

Record THDi, THDv, current, temperature, power factor and alarm status at light, normal and peak load.

Connect the measurements to the right product

Use the results to compare active harmonic filter solutions, SVG and hybrid VAR systems and power capacitor systems. The equipment rating should follow the measured load profile, available fault level, cabinet environment and planned expansion.

Share your single-line diagram and measured harmonic data with Elumotive for an AHF installation review. For reference, review this power-quality resource and compare the measured result with your site requirements.

Project handover notes

Keep the one-line diagram, test records, protection settings and commissioning results together with the quotation. A documented baseline lets the maintenance team verify improvement after installation and gives procurement a clear specification for future expansion.

Review the measurements again after major process changes, transformer replacement, generator operation or renewable-energy expansion. This simple follow-up keeps the AHF installation guide recommendation aligned with the real operating conditions.
