Model: SET-AHF/50 · SET-AHF/100
690V/800V active harmonic filter for 3P3W systems, available in 50A and 100A. THDi ≤5%, 2nd–51st odd-harmonic filtering and ≤5 ms response.

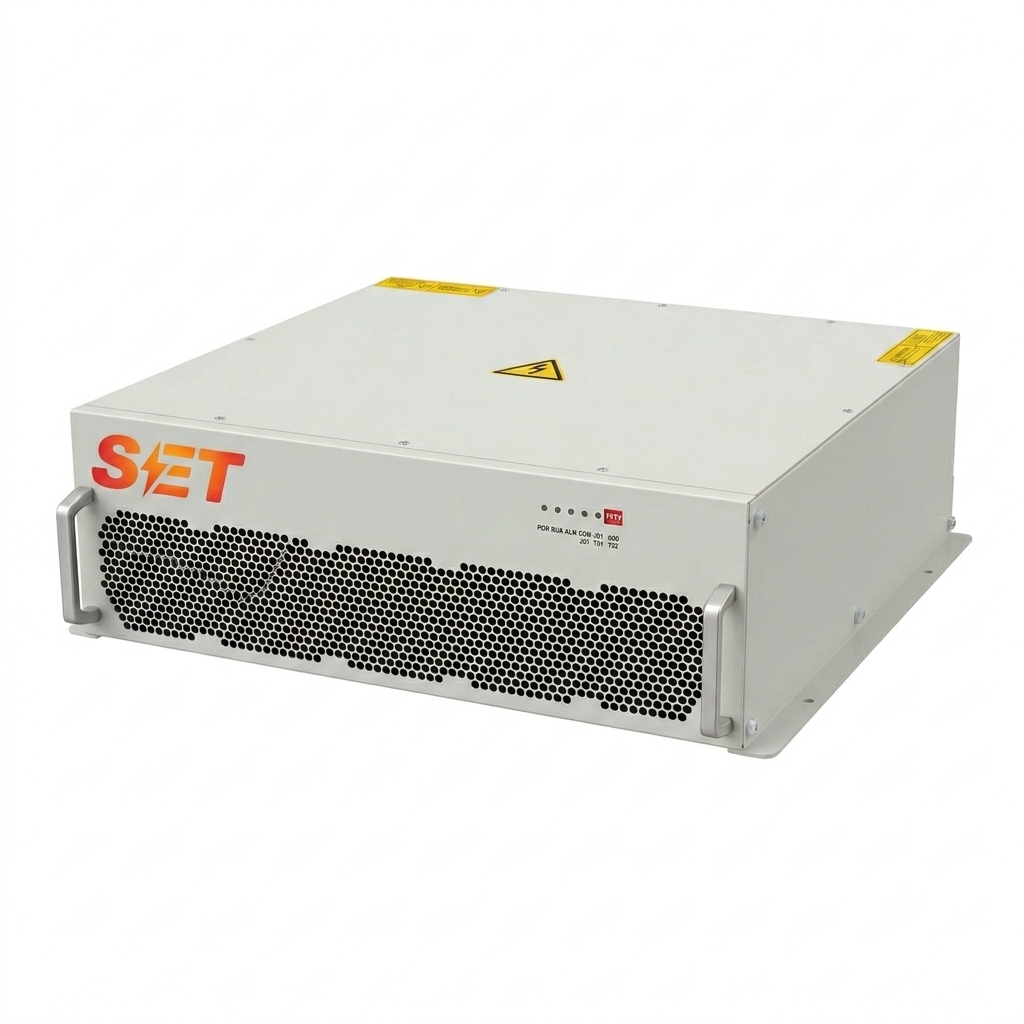

SET HIGH-VOLTAGE ACTIVE HARMONIC FILTER
Dedicated 3-phase 3-wire active harmonic filter for 690V and 800V networks, combining harmonic mitigation and bidirectional reactive-power compensation.
| Rated Voltage | System Voltage | Current | Model |
|---|---|---|---|
| 690 VAC | 528–790 V | 50 A | SET-AHF/50-6 |
| 690 VAC | 528–790 V | 100 A | SET-AHF/100-6 |
| 800 VAC | 680–920 V | 50 A | SET-AHF/50-8 |
| 800 VAC | 680–920 V | 100 A | SET-AHF/100-8 |
| Electrical connection | 3-phase 3-wire (3P3W) |
|---|---|
| Rated frequency | 50 / 60 Hz |
| Compensation modes | Harmonic mitigation + inductive/capacitive reactive-power compensation |
| Filtering range | 2nd–51st odd harmonics |
| Filtering performance | THDi ≤5% at rated load; typical harmonic reduction ≥97% |
| Target power factor | Adjustable from −1.0 to +1.0 |
| Response time | Initial ≤50 μs; overall ≤5 ms |
| Current limitation | Automatic, limited within 100% rated capacity |
| Switching frequency | 25.6 kHz |
| Thermal loss | ≤2.5% of rated capacity |
| Topology / controller | IGBT; DSP + FPGA; intelligent FFT adaptive algorithm |
| HMI / communication | External 7-inch touch HMI; Modbus; RS485; CAN bus; mobile app support |
| Cooling / noise | Intelligent PWM air cooling; <60 dB (<45 dB at low fan speed) |
| Environment | IP20; −20°C to +55°C; RH ≤95% non-condensing; ≤2000 m rated |
| Models | Size (W × H × D) | Net Weight |
|---|---|---|
| SET-AHF/50-6 · SET-AHF/100-6 | 680 × 200 × 550 mm | 44 kg |
| SET-AHF/50-8 · SET-AHF/100-8 | 680 × 200 × 550 mm | 48 kg |
Datasheet references: ISO 9001:2015, ISO 14001:2015, CE and Type Test Report.
Send your voltage, load current, THDi and single-line diagram. Our engineers will confirm whether the 50A or 100A model is suitable.
