Model: SET-FASVG400
400V fanless ASVG for three-phase systems, 10 / 15 kVAR. Dynamic reactive power and harmonic compensation with PF ≥0.99, ≤5 ms total response, natural heat dissipation and ≤40 dB noise.

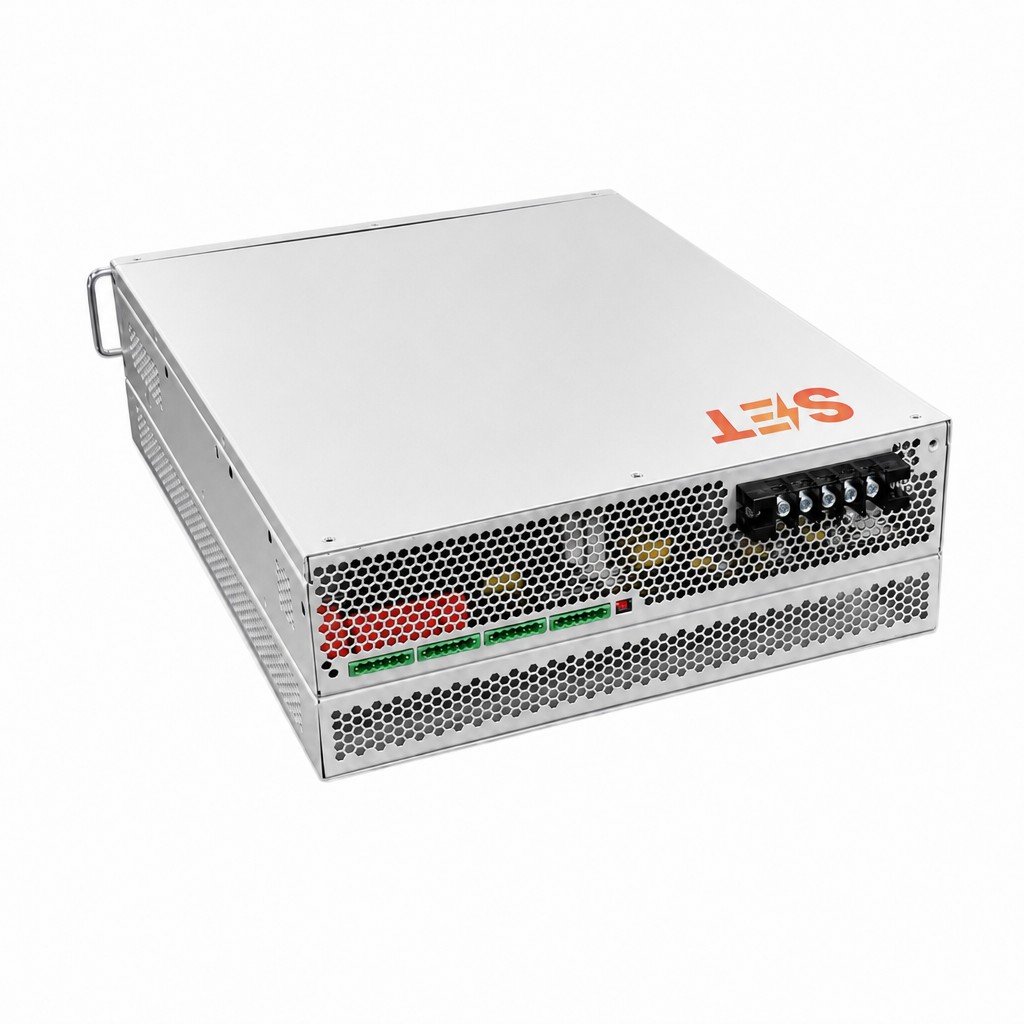

SET Fanless Advanced Static Var Generator
A fanless static var generator for 400V three-phase systems. It provides dynamic reactive power and harmonic compensation without forced-air cooling, with power factor ≥0.99 and total response ≤5 ms.
The SET-FASVG400 is a fanless (natural heat dissipation) advanced static var generator rated for 400V three-phase systems at 10 kVAR or 15 kVAR. It compensates reactive power and harmonics in real time, supports both inductive and capacitive compensation, and handles 2nd–25th order harmonics with up to 100% of rated capacity allocated to harmonic control. Both ratings are available in a 3P3W or 3P4W connection.
| Rated voltage | 400V ±15% |
|---|---|
| Rated frequency | 50 / 60 Hz |
| Connection | 3P3W / 3P4W |
| Rated capacity | 10 / 15 kVAR |
| Cooling | Natural heat dissipation (fanless) |
| Dimensions (W×D×H) | 440 × 578.5 × 175 mm |
| Weight | 28 kg |
| Enclosure | IP20 |
Continuously supplies leading or lagging reactive current to keep the power factor at 0.99 or higher without step switching.
Compensates 2nd–25th order harmonics with up to 100% of rated capacity, with a harmonic filter rate of at least 95%.
Compensates both inductive and capacitive reactive power, so lightly loaded or capacitive networks are covered as well.
Harmonic compensation can be set to selected orders or to full compensation, depending on the load profile.
Rated system voltage: 400V ±15% · 3P3W / 3P4W · 50/60 Hz
| Rated Capacity | Connection | Recommended Model |
|---|---|---|
| 10 kVAR | 3P3W / 3P4W | SET-FASVG400-10 |
| 15 kVAR | 3P3W / 3P4W | SET-FASVG400-15 |
| Product name | Fanless Static Var Generator (SET-FASVG400) |
|---|---|
| Rated voltage | 400V ±15% |
| Frequency | 50 / 60 Hz |
| Connection | 3P3W / 3P4W |
| Rated capacity | 10 / 15 kVAR |
| Compensation | Reactive power and harmonic compensation; inductive and capacitive compensation |
| Harmonics | 2nd–25th order; up to 100% of rated capacity; selective or full compensation |
| Power factor | PF ≥0.99 |
| Harmonic filter rate | ≥95% |
| Response | Total response ≤5 ms; instantaneous response ≤50 μs |
| Loss | ≤2.5% |
| Controller | DSP + FPGA |
| Display | 4.3-inch or 7-inch LCD |
| Communication | Modbus / RS485 |
| Dimensions (W × H × D) | 440 × 578.5 × 175 mm |
| Weight | 28 kg |
| Enclosure | IP20 |
| Noise level | ≤40 dB |
| Cooling | Natural heat dissipation (fanless) |
| Ambient temperature | −20 to +30 °C; higher temperatures require derating |
| Relative humidity | 0–95%, no condensation |
| Altitude | ≤1500 m; above 1500 m derate 1% per 100 m |
No cooling fans. Heat is removed by natural convection, which reduces moving parts and maintenance work.
Noise level is 40 dB or lower, so the unit suits areas where audible fan noise is not acceptable.
IP20 enclosure for indoor installation. Ambient −20 to +30 °C (derate above), RH 0–95% without condensation, altitude ≤1500 m (derate 1% per 100 m above).
