Model: SET-ASVG400
400V ASVG for 296–465V systems, 10–150 kVAR. Dynamic reactive compensation, harmonic mitigation and three-phase balancing with ≤5 ms response.

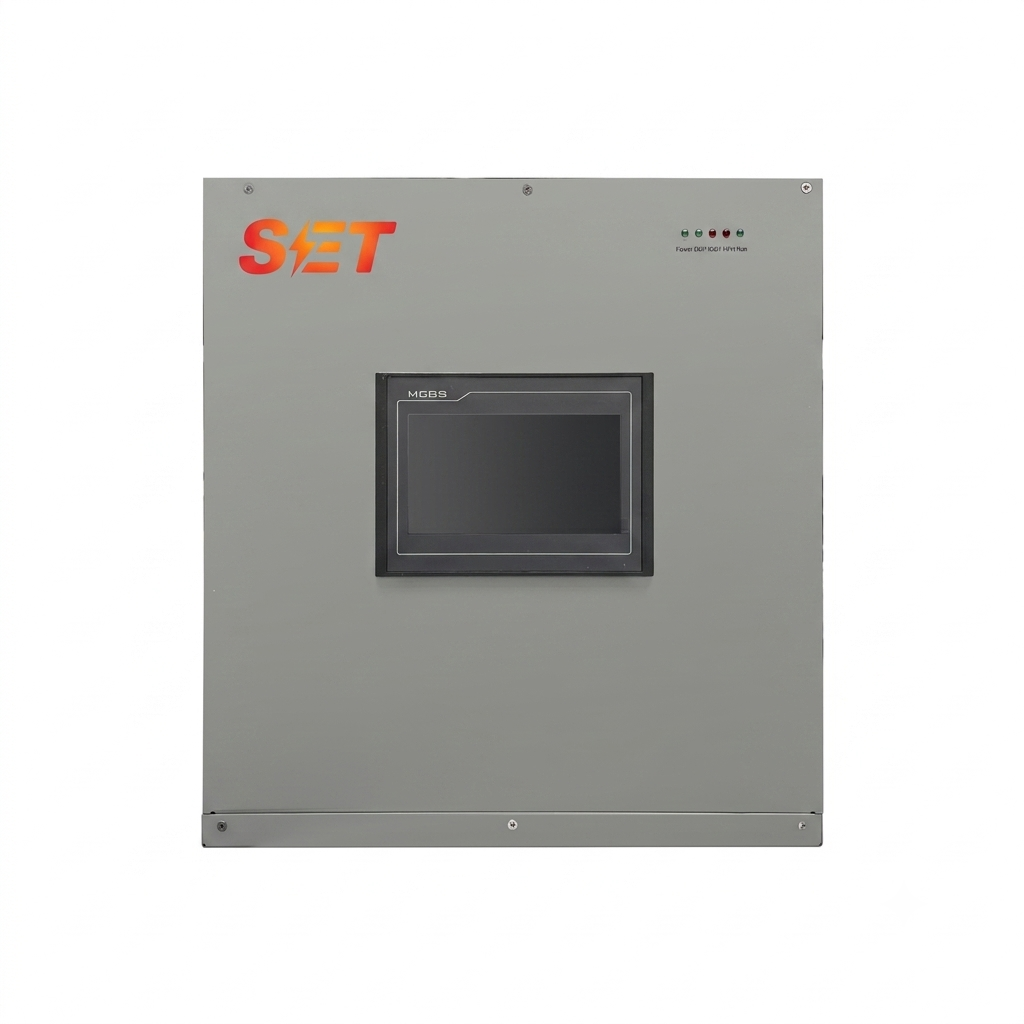

SET Advanced Static Var Generator
One platform for dynamic reactive-power compensation, harmonic mitigation and three-phase load balancing. Designed for fast-changing industrial and commercial loads with response in ≤5 ms.
Continuously supplies leading or lagging reactive current to stabilize power factor without capacitor-bank steps.
Compensates 3rd–25th odd harmonics with up to 100% of rated current allocated to harmonic control.
Reduces three-phase current imbalance to ≤5%, protecting transformers, cables and motors.
Coordinates with capacitor switching when a mixed ASVG + capacitor solution is preferred.
Rated system voltage: 296–465 V · 3P3W / 3P4W · 50/60 Hz
| Rated Capacity | Rated Current | Recommended Model |
|---|---|---|
| 10 kVAR | 15 A | SET-ASVG400-10 |
| 15 kVAR | 25 A | SET-ASVG400-15 |
| 30 kVAR | 50 A | SET-ASVG400-30 |
| 50 kVAR | 75 A | SET-ASVG400-50 |
| 75 kVAR | 100 A | SET-ASVG400-75 |
| 100 kVAR | 150 A | SET-ASVG400-100 |
| 150 kVAR | 200 A | SET-ASVG400-150 |
| Control technology | DSP + FPGA, three-level IGBT topology, 25.6 kHz switching |
|---|---|
| Compensation performance | THDi ≤5%; harmonic reduction ≥97%; PF adjustable −1.0 to +1.0 |
| Response | Initial response ≤50 μs; full response ≤5 ms |
| HMI & communication | 7-inch touch HMI; Modbus RTU; RS485 / CAN; app operation |
| Cooling & noise | Intelligent PWM forced-air cooling; <60 dB |
| Environment | IP20; −20°C to +55°C; RH ≤95%; ≤2000 m without derating |
Compact modular format for switchboard integration and capacity expansion.
Space-saving installation close to the load or distribution panel.
Factory-integrated solution with HMI, protection and multi-module parallel operation.
Available with CE documentation, ISO 9001:2015 and ISO 14001:2015 quality systems, type-test documentation, drawings, manuals and project-specific technical support.
Send us your single-line diagram, load current, power factor and harmonic data. Our sales engineers can prepare the capacity selection and project solution.
